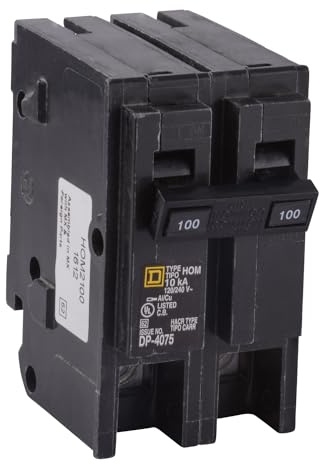

Square D by Schneider Electric Homeline 100 Amp Mini Circuit Breaker, 2 Pole, 120/240V AC, 10kA Breaking Capacity, Plug in Mount, Standard Type, Residential Use (‎HOM2100CP)

Product description

• RESIDENTIAL CIRCUIT PROTECTION: Square D Homeline Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection
• EASY TO INSTALL: Plug-on neutral design with a shorter footprint allows for quick plug-in mounting installation in Square D Homeline load centers and CSEDs with two spaces
• 100 AMP TWO-POLE CIRCUIT BREAKER: This circuit breaker delivers 100A protection with a two-pole configuration, ideal for larger appliances like dryers, ranges, and air conditioners that require 240V branch circuits
• STANDARD CIRCUIT PROTECTION: This circuit breaker offers standard protection and is HACR rated; Electrical connections are box lugs that will accept 1 wire; The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire
• SPECIFICATIONS AND RATINGS: Dimensions - Height: 3.13 in (79.50 mm); Width: 2 in (50.8 mm); Depth: 2.98 in (75.69 mm); Current Rating - 100A; Voltage - 120/240V AC; Breaking Capacity - 10kA; 2 Poles; Certifications - UL-listed, HACR-rated
• Homeline 100 Amp two-pole circuit breaker
• Plug-on design, easy to install
• Compatible with Homeline load centers and CSED devices
• 120/240 Vac
• Rated for 10,000 AIR
